Software Ideas Modeler 12.82 - Improved C++ Source Code Parser

The new version improves C++ code reverse engineering to diagram and it fixes some other found issues.

Improvements and Fixes

  • Improved C++ parser (support for explicit, enum class and enum struct)
  • Fixed alignment style application to the relationship texts
  • Fixed missing attribute/operation separator line for UML Class
  • Fixed application crash when generating documentation with ERD entities
  • Fixed application crash when generating documentation with long tables
  • Fixed parsing some C++ code with operators
  • Fixed behavior of a connector with multiple control points when only one end is locked

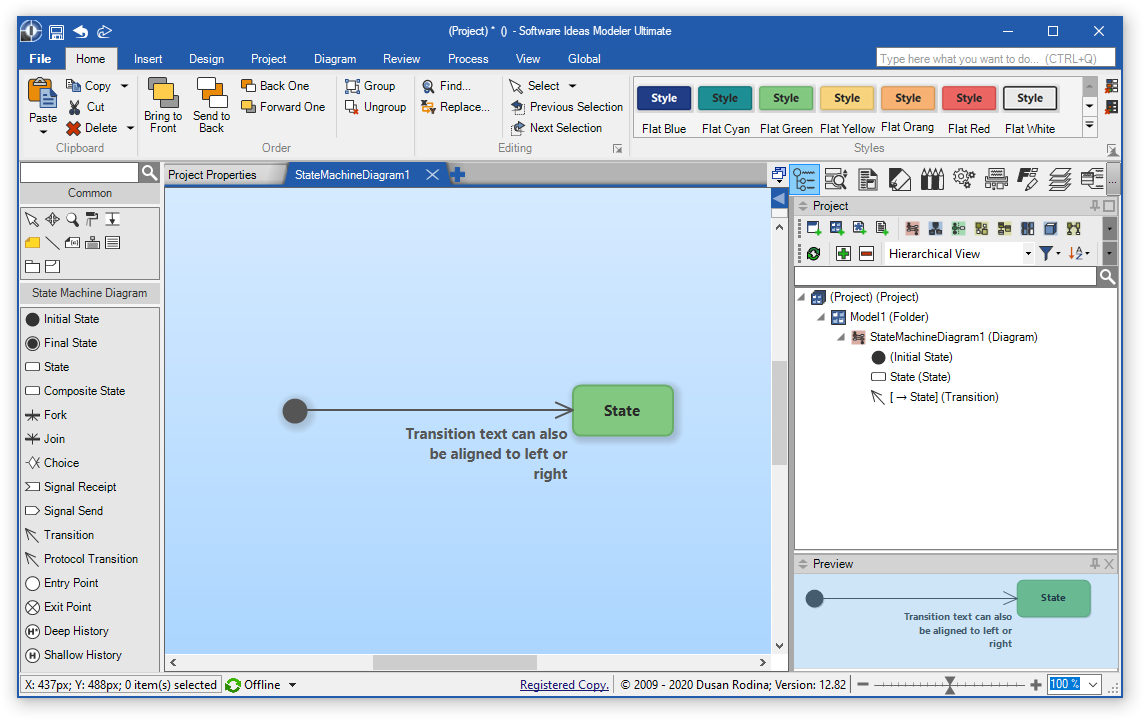

Transition text can also be aligned to left or right now
Transition text can also be aligned to left or right now
