Version 10.16 - Better Diagramming
New version introduces two small improvements in diagram editing and fixes few found bugs.
New Features in Action
![Improved Activity Diagram Editing](/images/version10-16/flow.gif)

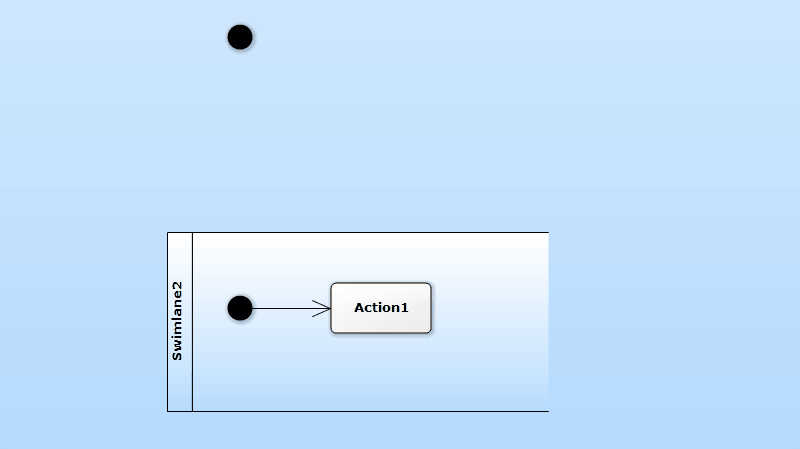

Improved Activity Diagram Editing
![Auto Orientation of Swimlane (UML Diagram)](/images/version10-16/swimlane.gif)

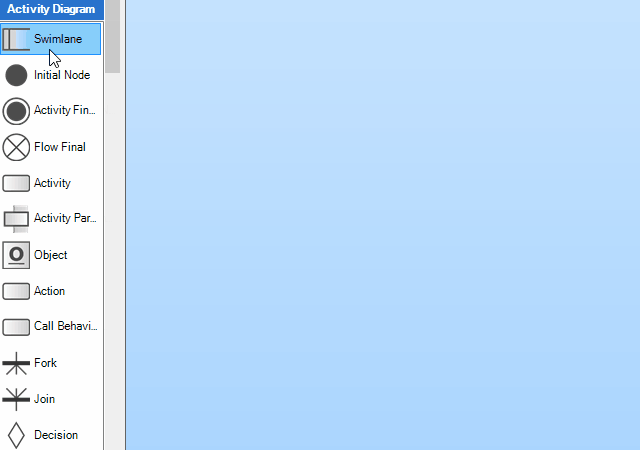

Auto Orientation of Swimlane (UML Diagram)
New Features and Improvements
- Elements inserted using context bar are placed into the container
- Orientation of inserted UML Swimlane is set automatically by its size
Fixed Bugs
- Fixed application crash when using Properties sidebar and nothing is selected
- Fixed inserting multiple elements at once to a swimlane
- Fixed resizing element after moving a group of elements with relationships
