Python Reverse Engineering and Table Printing

Software Ideas Modeler 10.40 brings other interesting features. Python is another supported language for source code reverse engineering. You may also find useful to print the tables like list of elements, requirements, matrices, etc. directly from the application.

Make Independent Model

The new feature Make Independent Model is available in the context ribbon tab Model in Editing group. It allows you to preserve the current model of the diagram element and make it independent from further changes which could be made on the original shared model. This action affects only elements with a shared model, it has no effect on single instance elements.

Make Independent Model
Make Independent Model

Print Tables

There is a lot of various grid, tables and matrices in Software Ideas Modeler - e.g. Element Browser, Requirement List, Use Case List, TO-DOs... In previous versions, it was possible to export these lists to CSV format. The new version supports print of these tables. You can also configure which columns should be printed and also their order.

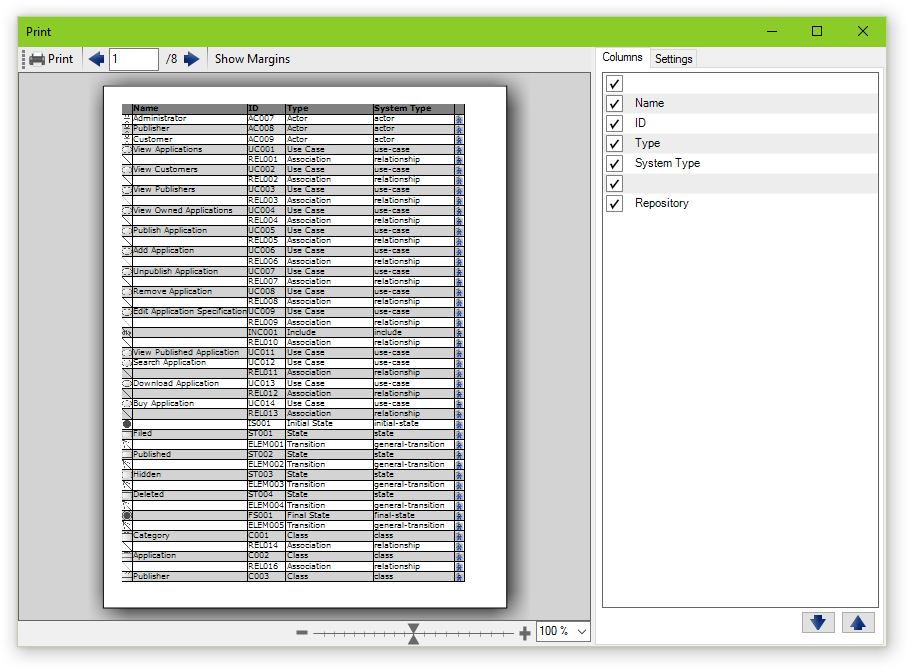

Table Print - Preview Dialog
Table Print - Preview Dialog

Other Features and Fixes

Do you have an idea for a new feature or did you find a bug in Software Ideas Modeler? Let us know and get a discount voucher. Read more here about this special offer.

New Features and Improvements

  • Added support for Python source code reverse engineering
  • Added print of requirement table [RQ#475]
  • Added print of element browser grid, matrices, grids, tasks, persons
  • Added new feature - Make Independent Model [RQ#445]
  • Print preview can be scrolled and zoomed using mouse wheel

Fixed Bugs

  • Fixed rendering lines in grid control with tree
  • Fixed diagram scaling by page format in PDF export
  • Fixed application crash when opening the context ribbon tab for field
