Enhanced Diagramming, Better SQL DDL Generation and Database Reverse Engineering

Software Ideas Modeler 11.60 improves diagram creation. The overall experience should be better thanks to several improvements and fixes. The new version enhances also SQL script generation and database reverse engineering.

New Features and Improvements

  • Improved full screen mode
  • Open links from Sharepoint [RQ#458]
  • Improved SQL script generation - added identity insert [RQ#1559]
  • Added new template command: HasAutoIncrement (ERD Entity)
  • Set UML class attribute type by dragging association from another class to this attribute
  • Improved connecting two fields (e.g. attributes)

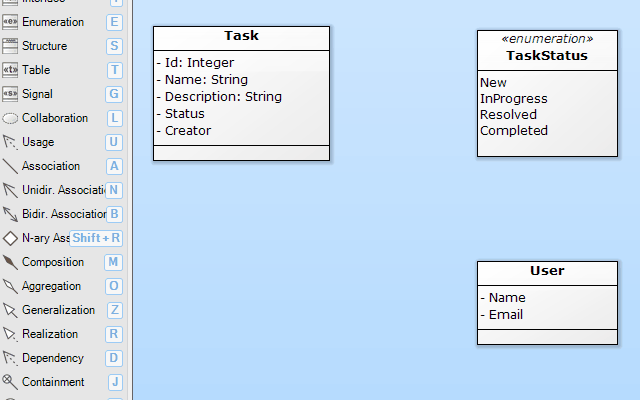

Attribute Auto Typing
Attribute Auto Typing

Fixed Bugs

  • Fixed SQL reverse engineering for some configuration [RQ#1557]
  • Fixed application crash in Aliases Editor when no elements exist
  • Fixed recording macros
  • Fixed rare application crashes when displaying drop downs in ribbon or submenus
  • Fixed renaming elements in container on second click
  • Fixed application crash when exporting diagram
  • Fixed incorrect locking to both ends of relationship when 'lock to fields' enabled and relationship is connected to only one field
